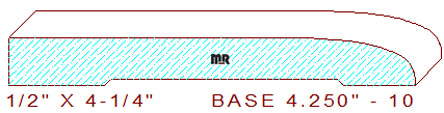

This Common Base Moulding 4-1/4" - 10 measures 4.250" wide by .500" thickness, with a .500" depth of cut on the top horizontal set of blades. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for this type of milling operation. Please search our backout category for a suitable relief cut for this detail, we have a few options to choose from.
The contemporary profile is comprised of a 2-15/16" wide fillet, connected to three tangent radiuses which create the streamline appearance of the pattern.
Utilize any of our profiles to create a stylish custom moulding catalog for your millwork company, offer more eye-catching patterns to your clients, while reducing production cost spent on moulding knife design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
