Base Moulding 4-1/4" - 12

Base Moulding 4-1/4" - 12

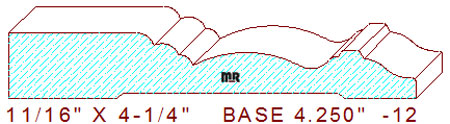

This ornate base moulding 4-1/4" - 12 measures 4.250" wide by .687" thickness. The creative profile is comprised of a 1-1/2" wide straight line with a 3/16" radius edge that transitions into two cascading quarter round beads, attached to an elongated cyma reversa connected to a trapezoid shaped raised fillet with a small ogee at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile that will enhance this pattern, make it irresistibly compelling by simply changing the search sizes to find the one that compliments this beautiful pattern.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .625" (top knives) & .062" (bottom cutters).

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
