Base Moulding 4-1/4" - 13

Base Moulding 4-1/4" - 13

This Fashionable Base Moulding 4-1/4" - 13 measures 4.250" wide by .687" thickness, with a .687" depth of cut on the top horizontal set of blades. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for this type of milling operation. Please search our backout category for a suitable relief cut for this detail, we have a few options to choose from.

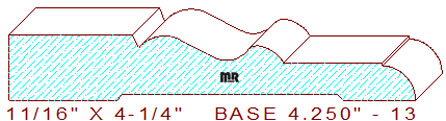

The modish profile is comprised of a 1-9/32" wide by 1/8" deep beveled stepped fillet, attached to an elongated cyma reversa, with a beak shape in the center, connected to a 1-3/32" wide by 1/32" deep stepped fillet, joined to a 3/8" radius quarter round circle located at the top of the pattern.

Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the moulding knives.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
