Base Moulding 4-1/4" - 14

Base Moulding 4-1/4" - 14

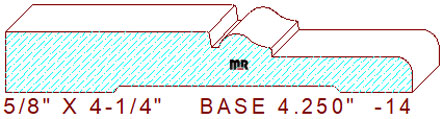

This custom baseboard moulding 4-1/4" - 14 measures 4.250" wide by .625" thickness, allowing the detail to be machined out of four quarter lumber. The creative profile is composed of a 2-1/8" wide flat line with a 5/32" vertical step in the left center, connected to a 5/64" wide sunk fillet that merges to a short two tangent radius cyma recta with a 3/32" drop in elevation in the center, joined to a 1-15/32" wide line segment with a 3/16" round-over leaving a 3/8" thickness dimension on the right side of the design.

We're delighted you found a beautiful profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our talented clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .598" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
