Baseboard 4-1/4" - 15
Baseboard 4-1/4" - 15

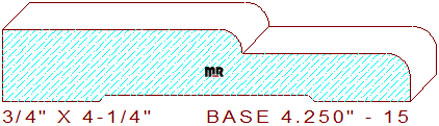

This modern baseboard 4-1/4" - 15 measures 4.250" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. This beautifully simplistic profile is composed of a 2-1/2" wide by 1/4" tall flat line segment with a 1/4" rounded inside edge on the top center, connected to a 1-3/4" wide by 1/2" thickness horizontal line with another 1/4" rolled edge on the right side of the design.
Try installing one of our fancy base shoes on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided. Let us assist you in shaping your home’s astonishing architectural decor, one attractive profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.656
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.00
$303.00
Total:
$626.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$323.00
Total:
$666.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$353.00
Total:
$726.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
