Baseboard 4-1/4" - 17
Baseboard 4-1/4" - 17

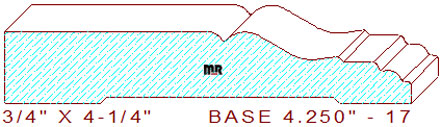

This stylishly attractive baseboard 4-1/4" - 17 measures 4.250" wide by .750" thickness. The compelling profile is composed of a 2-9/32" wide horizontal line with a 3/16" round-over in the center, connected to a graceful down sloping two tangent radius cyma reversa with a beveled edge, joined to a 3/8" wide line segment with a 1/16" eased edge and an ovolo shaped bead at the thin top side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.692
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.00
$303.00
Total:
$626.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$323.00
Total:
$666.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$353.00
Total:
$726.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
