Baseboard 4-1/4" - 26

Baseboard 4-1/4" - 26

Baseboard 4-1/4" - 26

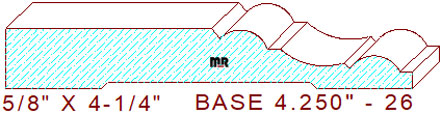

This creative baseboard 4-1/4" - 26 measures 4.250" wide by .625" thickness, permitting the pattern to be milled out of four-quarter lumber. The desirable profile is comprised of a 2-5/32" broad horizontal line with a 5/64" beveled edge on the top left, connected to a 1/2" wide convex arc joined to a 9/64" fillet and a 43/64" radius concave semicircle in the center, attached to a 1/16" wide angle and a 17/32" wide curvature with a 1/8" wide fillet, leaving an 11/64" thickness dimension on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.454
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$293.00
$293.00
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$313.00
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.00
$333.00
Total:
$666.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
