Baseboard 4-1/4" - 34

Baseboard 4-1/4" - 34

Baseboard 4-1/4" - 34

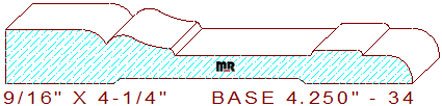

This common baseboard 4-1/4" - 34 measures 4.250" wide by .562" thickness, allowing the detail to be machined from four-quarter lumber. The beautiful profile is composed of a 1-3/64" wide flat line with a 9/32" rounded inside edge on the left, connected to a decorative two tangent radius cyma reversa with a 1/16" vertical step that attaches to a 1-27/64" wide sunk fillet in the center, joined to a 35/64" wide raised fillet with 1/16" eased edges and a 17/32" broad line segment with a 9/32" round-over on the right side of the pattern. We offer another profile in the same size but with different inner dimensions for your review and consideration, baseboard 4.500" - 35.

Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate be used for these milling operations.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.563
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$293.00
$293.00
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$313.00
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.00
$333.00
Total:
$666.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
