Baseboard 4-5/16" - 2
Baseboard 4-5/16" - 2

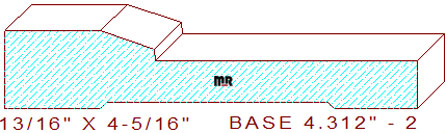

This beautifying baseboard 4-5/16" - 2 measures 4.312" width by .812" thickness, requiring the use of a 4-9/16" wide blank of four-quarter lumber for milling on an industrial molder. The embellishing pattern is designed to be used in conjunction with many of our fancy panel mold details. It contains a one-inch-wide flat line connected to an 18.435-degree angled line that transitions the elevation 3/16" on the top left. The canted line retains a 1/8" vertical step joined to a 2-3/4" flat line segment leaving a 1/2" thickness on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.312
Depth of Cut: 0.312
Bottom Cutter Head
Width: 4.312
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.22
$306.22
Total:
$612.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$326.47
$326.47
Total:
$652.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$356.84
$356.84
Total:
$713.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
