Base Moulding 4-3/8" - 1

Base Moulding 4-3/8" - 1

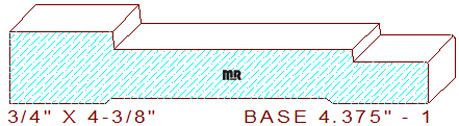

This Southwest Style Base/Case Moulding 4-3/8" - 1 measures 4.375" wide by .750" thickness, the stepped profile is comprised of three different size elevations, the first section on the bottom measures 1-3/32" wide by 3/16" deep, the center dimension is 2-1/2" wide with a 1/8" drop, the third step is 25/32" wide and measures 7/16" thickness at the thinnest portion of the pattern.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
