Baseboard 4-3/8" - 14
Baseboard 4-3/8" - 14

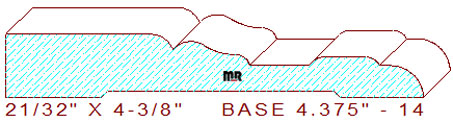

This designer baseboard 4-3/8" - 14 measures 4.375" width by .656" thickness allowing the use of four quarter lumber for milling on a commercial-grade molder. The stylish profile contains a 1-3/4" broad line segment with a 1/4" rolled inner edge on the top left. The rollover joins a downsloping three tangent radius wave-like curvature joined to a 5/8" sunk fillet in the center. Connected to a 47/64" wide raised fillet with 5/32" eased edges with an 11/32" quarter round on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.656
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$330.00
$309.50
Total:
$639.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$350.50
$330.00
Total:
$680.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$381.25
$360.75
Total:
$742.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
