Baseboard 4-3/8" - 19

Baseboard 4-3/8" - 19

Baseboard 4-3/8" - 19

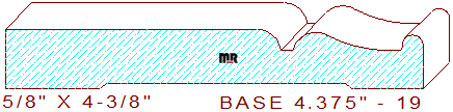

This stunning baseboard 4-3/8" - 19 measures 4.375" width by .625" thickness authorizing the use of four quarter lumber for milling on a commercial-grade molder. The impressive profile contains a 2-7/8" broad line segment with a 1/4" rounded inner edge, merged with a 1/8" wide sunk fillet in the center. The flat line attaches to a graceful two-tangent radius s-shaped curvature with a 7/32" half-circle on the design's right side.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.326
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.25
$299.25
Total:
$598.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.75
$319.75
Total:
$639.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.25
$340.25
Total:
$680.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
