Base Moulding 4-3/8" - 2

Base Moulding 4-3/8" - 2

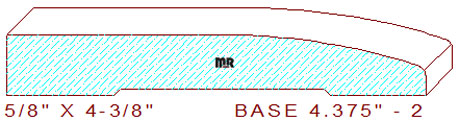

This Streamline Base Moulding 4-3/8" - 2 measures 4.375" wide by .625" thickness, with a .594" depth of cut on the top horizontal set of blades. Please search our backout category for a suitable relief cut for this detail, we have a few available options to choose from.

The standard profile is comprised of a 2-1/4" wide horizontal line tangent to a 6-11/16" radius circle, there is a 1/8" radius eased edge at the top of the pattern that is tangent to both the large radius arc and the vertical fillet on the smaller side of the pattern.

With over 15,000 moulding profiles in our search by size catalog, there is something for everyone’s architectural style. Utilize our Moulding Manufacturers Map listed by states to help you locate a local mill in your area to manufacture this creative profile.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
