Base Moulding 4-3/8" - 4

Base Moulding 4-3/8" - 4

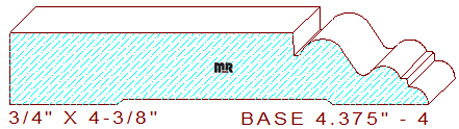

This Trendy Base Moulding 4-3/8" - 4 measures 4.375" wide by .750" thickness, with a .750" depth of cut on the top horizontal set of blades. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Please search our backout category for a suitable relief cut for this detail, we have a few options to choose from. You may have to change the backout search parameters by an eighth of an inch or so to find a suitable size pattern.

The creative profile is comprised of a 2-15/16" wide by 1/4" deep stepped fillet, attached to a 3/32" wide sunk fillet, connected to a down sloping cyma reversa and a 3/16" radius half round circle, joined to a small stepped fillet with a 3/16" radius quarter round circle at the top of the pattern.

Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
