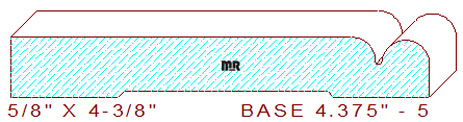

This Contemporary Base Moulding 4-3/8" - 5 measures 4.375" wide by .625" thickness, with a .406" depth of cut on the top horizontal set of blades. Please search our backout category for a suitable relief cut for this detail, we have a couple of options to choose from. You may have to change the backout search parameters by an eighth of an inch or so to find a suitable size pattern.
The modern profile consists of 3-13/16" wide straight horizontal line with a 1/4" radius edge that transitions into a 1/16" wide sunk fillet, attached to a recessed 1/4" radius half round circle located at the top of the pattern.
Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile that will enhance this pattern, make it irresistibly compelling by simply changing the search sizes to find the one that compliments this beautiful baseboard pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
