Baseboard 4-7/16"

Baseboard 4-7/16"

Baseboard 4-7/16"

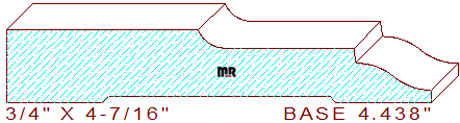

This historic baseboard 4-7/16" measures 4.438" width by .750" thickness, requiring the use of a 4-11/16" wide blank of four-quarter lumber for milling on a commercial molder. The old-world profile contains a two-inch-wide flat line on the top left. The segment connects to a 1-5/8" broad congee derived from a 3/16" concave semicircle with a 5/32" vertical step in the center. The remaining portion of the pattern retains a two tangent radius ogee made up from a 5/8" radius semicircle, leaving a 1/8" thickness dimension on the design's right side. We offer a wide selection of baseboards with similar design characteristics; here is one you may want to review and consider, baseboard 4.438" - 8.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.438
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.438
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.40
$302.40
Total:
$604.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.15
$323.15
Total:
$646.30
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.90
$343.90
Total:
$687.81
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
