Base Moulding 4-7/16" - 3

Base Moulding 4-7/16" - 3

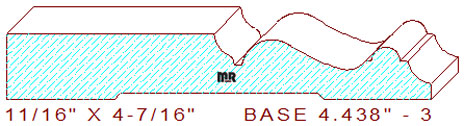

This Colonial Base Moulding 4-7/16" – 3 measures 4.438" wide by .687" thickness with a .521" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find a suitable size cutter to mill the bottom side of this pattern.

The stylish profile is comprised of a 2-11/64" wide straight line, connected to a 15/64" radius cavetto and small sunk fillet, this transitions into three tangent radiuses creating a graceful cyma reversa, joined to a 5/32" radius half round circle flanked by small fillets with a 9/32" radius cove positioned at the top of the pattern.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
