Baseboard 4-7/16" - 4
Baseboard 4-7/16" - 4

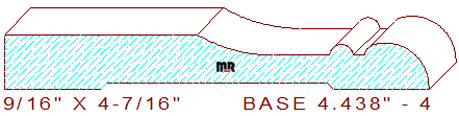

This custom baseboard 4-7/16" - 4 measures 4.438" wide by .563" thickness. The designer profile is comprised of a 2-1/64" broad horizontal line at the bottom, connected to a 1-3/8" wide cong'e consisting of a shallow 1-19/32" radius cove, attached to a small 1/4" wide half circle with a 1/8" wide sunk fillet and a thumbnail shaped arc at the top of the design.
Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these milling operations.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.438
Depth of Cut: 0.563
Bottom Cutter Head
Width: 4.438
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$312.78
$312.78
Total:
$625.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.53
$333.53
Total:
$667.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.66
$364.66
Total:
$729.31
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
