Baseboard 4-7/16" - 9
Baseboard 4-7/16" - 9

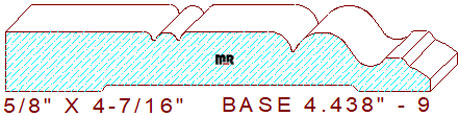

This decorative baseboard 4-7/16" - 9 measures 4.438" width by .625" thickness requiring a 4-11/16" wide blank of four-quarter lumber for milling on a commercial moulder. The custom profile contains a 1-17/32" broad flat line with a 3/32" rolled inner edge connected to a small recessed (.010") quarter-inch bead on the top left. The small half-circle attaches to a 1-5/32" wide fillet with a 3/32" round-over on the left and a 1/4" roll over on the right edges in the center. The remaining section contains a two tangent radius s-shaped curvature merged with a 3/16" raised fillet with a 1-1/32" convex semicircle on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.437
Depth of Cut: 0.558
Bottom Cutter Head
Width: 4.437
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$312.72
$312.72
Total:
$625.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.47
$333.47
Total:
$666.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.59
$364.59
Total:
$729.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
