Baseboard 4-1/2" - 1
Baseboard 4-1/2" - 1

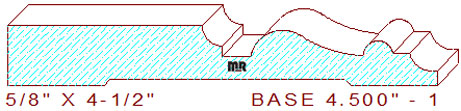

This colonial 4-1/2" - 1 baseboard measures 4.500" width by .625" thickness permitting the use of four-quarter lumber for milling on a commercial-grade molder. The old-world profile contains a 2-1/32" broad flat line connected to a 7/32" cove with a 7/64" vertical drop in elevation on the top center. The flat line connects to a 9/32" sunk fillet joined to a two tangent radius s-shaped curvature with a 5/16" wide half bead. Merged with an 11/64" flat line and a 1/4" cove with a 3/64" eased edge on the design's right corner.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.594
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$316.00
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$337.00
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.50
$368.50
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
