Base Moulding 4-1/2" - 14

Base Moulding 4-1/2" - 14

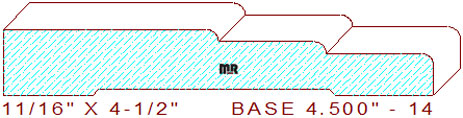

This southwest style stepped base Moulding 4-1/2" - 14 measures 4.500" wide by .687" thickness. The profile is comprised of a 2-1/4" wide step with a 1/8" radius edge, connected to a 1-1/4" wide by 1/8" step with a 1/8" eased edge, joined to another 1-1/4" wide by 7/16" thickness tier also with a 1/8" eased edge. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Read our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl or Kentwood moulder, our patterns will mill flawlessly on them all.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.500" / Depth of Cut = .500" (top knives) & .062" (bottom cutters).

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
