Base Moulding 4-1/2" - 15

Base Moulding 4-1/2" - 15

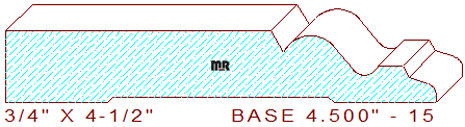

This attractive base moulding 4-1/2" - 15 measures 4.500" wide by .750" thickness. The profile is comprised of a 2-29/32" wide horizontal line with a beveled edge, connected to a deep sloping cyma reversa attached to a 1/4" wide raised fillet with a small chamfer, joined to a beveled line with a 1/8" eased edge at the top. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates also provide sufficient blend areas on the knives so you will never realize where one cutter begins or ends, this specific design feature will substantially increase yield during the milling process.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.500" / Depth of Cut = .750" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
