Base Moulding 4-1/2" - 16

Base Moulding 4-1/2" - 16

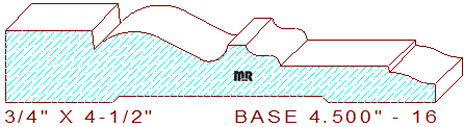

This ornate base moulding 4-1/2" - 16 measures 4.500" wide by .750" thickness. The beautiful profile is comprised of a 15/16" wide horizontal line with a 13/64" deep beveled edge, attached to a two tangent radius cyma reversa joined to a 3/16" wide raised fillet, connected to a small cyma recta that transforms into a 1-1/8" wide by 1/16" deep stepped line with a small ogee at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.500" / Depth of Cut = .562" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
