Base Moulding 4-1/2" - 26

Base Moulding 4-1/2" - 26

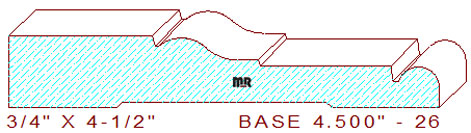

This Base Moulding 4-1/2" - 26 measures 4.500" wide by .750" thickness, with a .696" depth of cut on the top horizontal set of moulding cutters. Please search our backout category for a suitable relief cut for this detail, we have many different size options available.

The stylish profile is comprised of a 1-1/2" wide, by 1/16" deep stepped fillet, attached to a stepped cyma reversa, connected to a 1-3/8" wide horizontal line, with a 1/16" wide sunk fillet and a 7/32" radius half round circle positioned at the top of the pattern.

All moulding knife template designs have a ten-millimeter (.394") axial constant position to increase accuracy while simultaneously reducing moulder setup time.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
