Base Moulding 4-1/2" - 27

Base Moulding 4-1/2" - 27

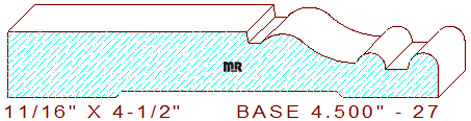

This Base Moulding 4-1/2" - 27 measures 4.500" wide by .687" thickness, with a .536" depth of cut on the top horizontal set of moulding cutters. Please search our backout category for a suitable relief cut for this detail, we have many different size options available for you to choose from.

The inventive custom profile is comprised of a 2-1/2" wide, by 1/8" deep stepped fillet that transitions into a sunk fillet, with an attached cyma reversa connected to two 5/32" radius half round circles, divided by a 1/4" wide sunk fillet at the top of the pattern.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile that will compliment this pattern, and make it irresistibly compelling, simply change the search sizes to find the one that compliments this pattern.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
