Base Moulding 4-1/2" - 28

Base Moulding 4-1/2" - 28

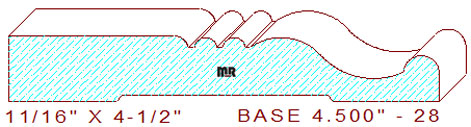

This Base Moulding 4-1/2" - 28 measures 4.500" wide by .687" thickness, with a .553" depth of cut on the top horizontal set of moulding cutters. Please search our backout category for a suitable relief cut for this detail, we have many different options available for you to choose from.

The creative profile is comprised of a 1-7/8" wide horizontal line with a 5/32" radius that transitions into two recessed half round beads, divided by 1/16" wide fillets attached to a cyma reversa with a 3/8" wide half round circle positioned at the top of the pattern.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
