Baseboard 4-1/2" - 30

Baseboard 4-1/2" - 30

Baseboard 4-1/2" - 30

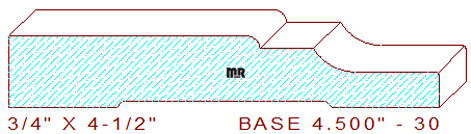

This creative baseboard 4-1/2" - 30 measures 4.500" wide by .750" thickness. The alternative profile comprises a 2-5/8" broad straight line with a 9/64" radius arc that transitions down to a 9/16" wide fillet in the center. It's joined to a 1-5/16" wide cong'e made from a 1/2" radius circle, bound to a 3/64" eased edge on the right edge of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.571
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$305.50
$305.50
Total:
$611.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$326.50
$326.50
Total:
$653.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$347.50
$347.50
Total:
$695.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
