Baseboard 4-1/2" - 4
Baseboard 4-1/2" - 4

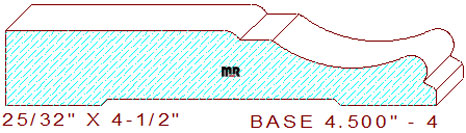

This creative baseboard 4-1/2" - 4 measures 4.500" wide by .781" thickness. The custom design comprises a 2-29/64" broad horizontal line with a 3/16" semicircular edge that joins to a 5/16" wide stepped fillet attached to a 1-23/64" radius scotia that transitions into an 11/64" bead with a chamfered edge on the top of the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.781
Depth of Cut: 0.226
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.375
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
Not Needed
$316.00
$316.00
Total:
$766.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
Not Needed
$337.00
$337.00
Total:
$815.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
Not Needed
$368.50
$368.50
Total:
$888.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
