Baseboard 4-1/2" - 54
Baseboard 4-1/2" - 54

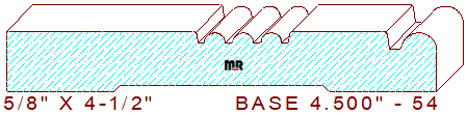

This reeded baseboard 4-1/2" - 54 measures 4.500" width by .625" thickness, necessitating a 4-3/4" wide blank of four-quarter lumber for milling on a commercial moulder. The multi-bead profile contains a two-inch-wide flat line on the top left. The short line connects to three recessed (.015") half-rounds measuring 7/32" wide, divided by four 5/64" sunk fillets in the center. The remaining portion consists of a 1-1/32" broad line with a 3/16" vertical step. Merged with a 1/8" sunk fillet and a recessed 3/8" half-circle on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.358
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$316.00
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.00
$337.00
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.50
$368.50
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
