Baseboard 4-9/16"
Baseboard 4-9/16"

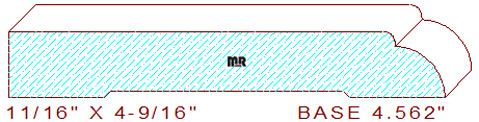

This baseboard 4-9/16" measures 4.562" wide by .687" thickness, and the profile section measures about 5/8" wide. It comprises a 1/8" radius tangent off the flat section with an attached .538" radius quarter round bead positioned at the top of the pattern. We purposely left .015" in the template design for sanding; this way, you will not flatten the 1/8" radius when sanding.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.563
Depth of Cut: 0.687
Bottom Cutter Head
Width: 4.563
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.53
$319.28
Total:
$659.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$361.78
$340.53
Total:
$702.31
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.66
$372.41
Total:
$766.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
