Base Moulding 4-9/16" - 1

Base Moulding 4-9/16" - 1

This Base Moulding 4-9/16" - 1 measures 4.562" wide by .687" thickness, with a .687" depth of cut on the top horizontal set of cutters. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Please search our backout category for an appropriate relief cut for this detail, we have many available options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find a suitable size to mill this pattern.

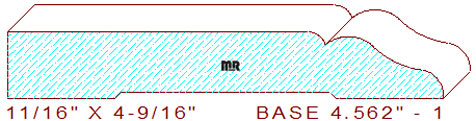

The innovative profile is comprised of a 3-5/16" wide horizontal line with a 3/16" radius eased edge, connected to an elevation changing cyma reversa, joined to a 9/32" radius quarter round circle at the top of the pattern.

Are you having issues with lumber movement or sniping on the right vertical cutter head, maybe proper calibration of the rebate cutter, (if you have one) and checking the knife to the fence alignment will help solve the issue.
