Base/Case Moulding 4-9/16" - 3

Base/Case Moulding 4-9/16" - 3

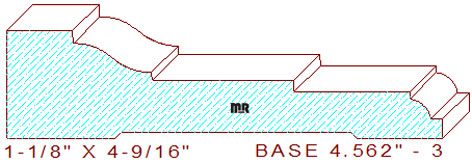

This Base/Case Moulding 4-9/16" - 3 measures 4.562" wide by 1.125" thickness, with a .936" depth of cut on the top horizontal set of knives. Search our backout category for an appropriate relief cut for this detail, we have a few options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find a suitable size cutter to mill the bottom of this detail.

The stepped profile can be used as either a baseboard or casing, the pattern is comprised of an 11/16" wide by 1/8" deep stepped fillet, connected to a cyma reversa attached to two stepped fillets with an ovolo positioned on the thin side of the design.

If utilizing this detail as a baseboard moulding try one of our fancy base shoe or plant on moulding designs on the bottom of the profile. If installing this profile as a casing try using one of our many different size backband mouldings on the side of this pattern, create a stylish and unique moulding casing design for your beautiful home or office, simply alter the search parameters to any size backband you want to view.

Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection, on any brand of industrial moulder machinery.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
