Base Moulding 4-5/8" - 1

Base Moulding 4-5/8" - 1

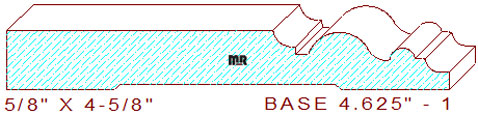

This highly detailed colonial baseboard moulding 4-5/8" - 1 measures 4.625" wide by .625" thickness, allowing the pattern to be milled from four quarter lumber. The old world profile is comprised of a 2-25/32" wide straight line on the left, connected to a small 3/16" cove with an attached 9/64" wide sunk fillet, joined to a two tangent radius cyma reversa with a 17/64" wide half round circle, small horizontal line segment and a 9/64" radius cavetto on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.625" / Depth of Cut = .475" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
