Baseboard 4-5/8" - 4
Baseboard 4-5/8" - 4

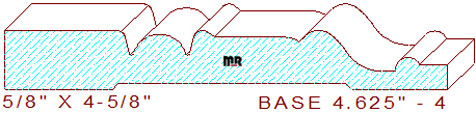

This custom baseboard 4-5/8" - 4 measures 4.625" wide by .625" thickness, allowing the pattern to be machined from four-quarter lumber. The designer profile is used as an embellished mopboard in manufacturing high-end cabinetry. It is composed of a 1-21/64" broad straight line on the left, connected to a recessed 19/32" wide half-round circle flanked by steep beveled lines that transitions into a 3/32" radius arc and a 7/8" broad line segment in the center, joined to a down-sloping cyma reversa that merges with a 1/4" wide half round bead and a 9/32" wide fillet on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.625
Depth of Cut: 0.430
Bottom Cutter Head
Width: 4.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$322.50
$322.50
Total:
$645.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$344.00
$344.00
Total:
$688.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$376.25
$376.25
Total:
$752.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
