Base Moulding 4-3/4" - 10

Base Moulding 4-3/4" - 10

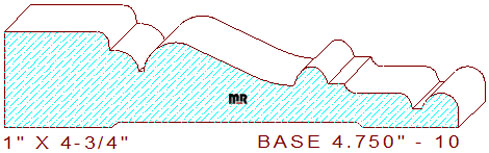

This ornate baseboard / casing moulding 4-3/4" - 10 measures 4.750" wide with a 1.000" thickness dimension, this detail will require five quarter lumber for milling on a industrial style moulder. The intricate profile is comprised of a 1-3/32" flat line that joins to two cascading quarter round circles with a small 3/64" wide sunk fillet, attached to a two tangent radius cyma reversa with a thumbnail shaped half round circle and small horizontal line, connected to a bidirectional congee with a 3/32" wide sunk fillet and a 3/8" wide half round circle on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.750" / Depth of Cut = .950" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
