Baseboard 4-3/4" - 12

Baseboard 4-3/4" - 12

Baseboard 4-3/4" - 12

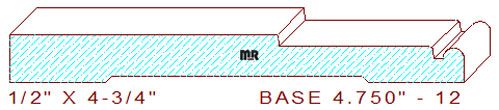

This baseboard measures 4-3/4" wide by 1/2" thick. The profile is composed of a two-step fillet. The first portion measures 2-13/16" wide by 1/8" deep, and the second section measures 1-5/8" wide by 1/8" deep. It also retains a half-round bead and a sunken fillet or quirk attached to the upper part of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.406
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.00
$318.00
Total:
$636.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.00
$340.00
Total:
$680.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$362.00
$362.00
Total:
$724.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
