This Classy Base Moulding 4-3/4" - 16 measures 4.750" wide by .687" thickness, this dimension is also the depth of cut, on the top horizontal moulding cutters. Caution; the moulding knives will come within .020" of the moulder bed plates while milling this detail on an industrial style moulder. Please search our backout category for a suitable relief cut for this pattern, we have a few options available to choose from.

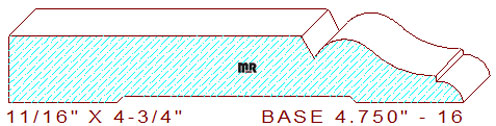

The profile is comprised of a 3-3/16" wide horizontal straight line with a connected bevel that transitions into a cyma reversa, attached to a small vertical fillet, and a 7/32" radius quarter round bead, positioned at the top of the pattern.
All moulding knife template designs have a ten-millimeter (.394") axial constant position to increase accuracy while simultaneously reducing moulder setup time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
