Base Moulding 4-3/4" - 19

Base Moulding 4-3/4" - 19

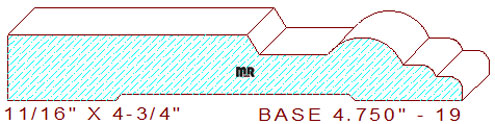

This Graceful Base Moulding 4-3/4" - 19 measures 4.750" wide by .687" thickness, with a .687" depth of cut on the top horizontal moulding cutters. Caution; the moulding knives will come within .020" of the moulder bed plates while milling this detail on an industrial style moulder. Please search our backout category for a suitable relief cut for this pattern, we have a few options available to choose from.

The creative profile is comprised of a 2-1/2" wide horizontal straight line, connected to a bevel and sunk fillet, measuring 27/32" wide, joined to a half round circle with two cascading radius edge fillets positioned at the top of the pattern.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the pattern to make it irresistibly compelling, simply change the search sizes to find the one that compliments this pattern.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
