Base Moulding 4-3/4" - 2

Base Moulding 4-3/4" - 2

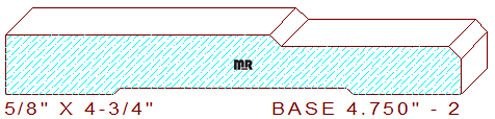

This Contemporary Base Moulding 4-3/4" - 2 measures 4.750" wide by .625" thickness, with a .313" depth of cut on the top horizontal moulding cutters. Please search our backout category for a suitable relief cut for this detail, we have a few options available to choose from.

The modern profile is comprised of a 2-3/4" wide horizontal fillet, attached to a 1/8" wide, by 1/8" deep chamfer, that bevel transitions into a 1-3/4" wide horizontal line with another 1/8" wide, by 1/8" deep chamfer positioned at the top of the pattern.

We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to have the correct size bar of knife steel in house, before you start knife grinding procedures and moulding production.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
