Base Moulding 4-3/4" - 4

Base Moulding 4-3/4" - 4

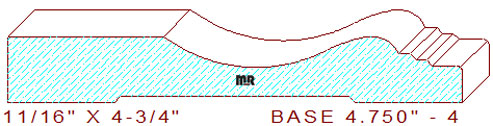

This Elegant Base Moulding 4-3/4" - 4 measures 4.750" wide by .687" thickness, with a .527" depth of cut on the top horizontal moulding cutters. Search our backout category for a suitable relief cut for this detail, we have a few available.

The profile is comprised of a 1-5/8" wide straight line, connected to an elongated cyma recta in the center, attached to three cascading stepped fillets, leaving a 3/8" thickness dimension at the top of the pattern. Utilize one of our many base caps or panel mouldings profiles to complement this pattern, simply change the search sizes to find, and create an innovative, one of a kind moulding baseboard design.

Try one of our 125% concentration Ultimate Borazon grinding wheels; finish grinding at 3000 rpm, and, at twenty degree, will create a superior micro edge on all your high-speed steel moulding knives. During the milling process, these knives will be capable of milling the finest quality architectural mouldings you have ever seen.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
