Base Moulding 4-3/4" - 6

Base Moulding 4-3/4" - 6

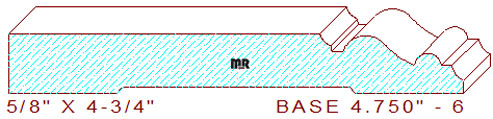

This Colonial Baseboard Moulding 4-3/4" - 6 measures 4.750" wide by .625" thickness, with a .523" depth of cut on the top horizontal moulder cutters. Please search our backout category for a suitable relief cut for this detail, we have many different sizes to choose from.

The old world profile is comprised of a 3-1/4" wide straight fillet, attached to a 3/16" radius cavetto, connected to a sunk fillet, that transitions into a cyma reversa joined with a half round bead, small fillet, and a little cove at the top of the pattern.

This professionally drafted cad dxf file contains two high precision moulding template designs to create moulder cutters for this gorgeous detail, one to mill the full profile, and the other for milling just the detail only portion of the design.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
