Base Moulding 4-3/4" - 9

Base Moulding 4-3/4" - 9

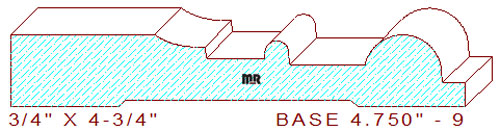

This Custom Base Moulding 4-3/4" - 9 measures 4.750" wide by .750" thickness, with a .500" depth of cut on the top horizontal moulding cutters. Search our backout category for a suitable relief cut for this detail, we have a few options to choose from, or let us design a custom detail based off your specific needs.

The profile is comprised of a 1-1/2" straight line, connected to a 3/4" radius stepped cavetto, that transitions into a 5/8" wide sunk fillet, attached to a 1/4" wide elongated half round bead, joined to a 13/16" wide half round circle which is flanked by horizontal fillets, leaving a 1/4" thickness dimension in the uppermost portion of the pattern.

Utilize one of our many base caps or panel mouldings profiles to complement this pattern, simply change the search sizes to find and create an innovative, one of a kind base moulding design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
