Base Moulding 4-13/16" - 1

Base Moulding 4-13/16" - 1

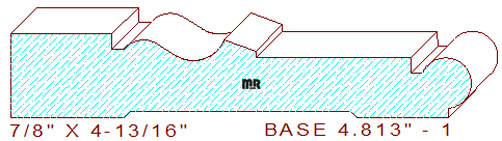

This Elegant Base Moulding 4-13/16" - 1 measures 4.813" wide by .875" thickness, with a .611" depth of cut on the top horizontal moulder cutters, and a .233" on the right vertical cutters. Please search our backout category for a suitable relief cut for this detail, we have many options available to choose from.

The gorgeous profile is comprised of a 1-1/16" wide, 5/32" deep stepped fillet, attached to a 1/8" wide sunk fillet that transitions into a cyma reversa with a chamfered edge, joined to a horizontal straight line flanked by a 1/16" and a 5/32" tall vertical line, that transforms into a three quarter round pencil bead positioned at the top of the pattern.

We offer many exceptional grades of quality high-speed steel and carbide for producing all our moulding knife profile designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
