Base Moulding 4-15/16"

Base Moulding 4-15/16"

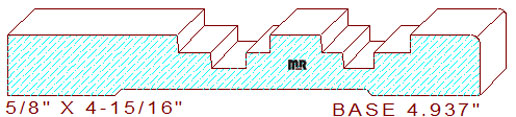

This Base Moulding 4-15/16" measures 4.937" wide by .625" thickness, with a .342" depth of cut on the top horizontal moulder cutters. Please search our backout category for a suitable relief cut for this detail, we have many options available to choose from.

The creative southwest style profile is comprised of a slightly off centered 17/32" wide raised fillet in the middle, flanked by two sets of bidirectional stepped fillets that transitions to the top and bottom portions of the pattern.

Custom-made excellence is a phrase used to define the beauty, style, and artisanship of all our moulding profile designs.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
