Base Moulding 4-15/16" - 1

Base Moulding 4-15/16" - 1

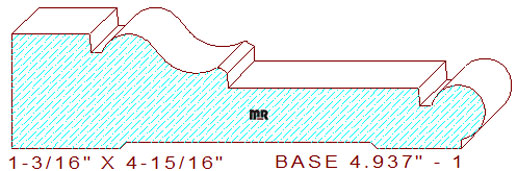

This Stylish Base Moulding 4-15/16" - 1 measures 4.937" wide by 1.187" thickness, with a .342" depth of cut on the top horizontal moulder cutters, and .249" on the right vertical cutters. Please search our backout category for a suitable relief cut for this detail, we have many options available to choose from.

The elegant profile is comprised of a 13/16" wide, 3/16" deep, stepped fillet attached to a 7/64" wide sunk fillet that transitions into a cyma reversa with a small chamfered edge, joined to a horizontal 2" wide straight line flanked by vertical lines that transform into a 9/32" radius, three quarter round pencil bead located at the top of the pattern.

Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful article will help you mill this profile to perfection on any industrial style moulder machine.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
