Base Moulding 5" - 10

Base Moulding 5" - 10

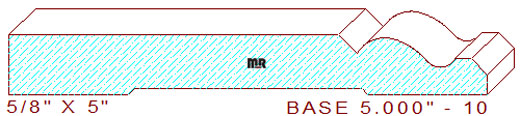

This stylish base moulding 5" - 10 measures 5.000" wide by .625" thickness with a .476" depth of cut on the top horizontal set of moulding knives. Browse our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The colonial style profile is comprised of a 3-7/16" wide straight line with a beveled edge, connected to a cyma reversa that transitions into a 11/64" wide raised fillet, attached to a 11/16" wide and deep chamfer positioned at the top of the pattern.

Ever wonder why some moulding knives never exactly line up with one another in the cutter head? Maybe a Weinig Opti Measuring Stand, and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
