Base Moulding 5" - 101

Base Moulding 5" - 101

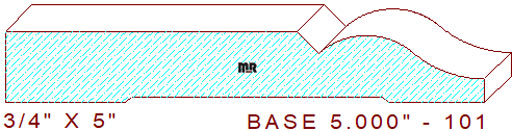

This decorative base moulding 5" - 101 measures 5.000" wide by .750" thickness. The lovely profile is comprised of a 3-9/32" wide horizontal line with a beveled edge, attached to a 3/4" radius arc that's tangent off a 1-5/32" semicircle, creating a beautiful cyma reversa at the top of the design. We have a larger version with similar design characteristics for your review and consideration, baseboard 5.500" - 115. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.000" / Depth of Cut = .500" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
