Base Moulding 5" - 102

Base Moulding 5" - 102

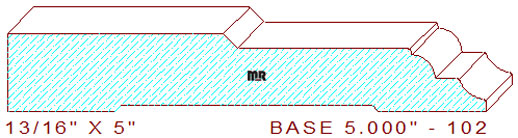

This beautiful base moulding 5" - 102 measures 5.000" wide by .812" thickness.The profile is comprised of a 2-1/4" wide straight fillet, attached to a small elevation changing chamfer, connected to a 1-49/64" wide horizontal line, joined to a small ovolo and a 5/16" radius cavetto at the top of the pattern.

Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you in the transformation of your client's house being constructed into a home.

Caution: the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.000" / Depth of Cut = .812" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
