Base Moulding 5" - 12

Base Moulding 5" - 12

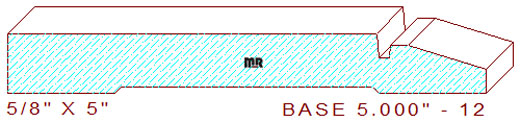

This contemporary base moulding 5" - 12 measures 5.000" wide by .625 thickness. The profile is comprised of a 3-7/8" wide by 1/4" deep stepped line, attached to a 1/8" wide by 1/8" deep quirk, connected to a 3/16" wide fillet and a 13/16" angled splay face leaving a 1/4" thickness dimension at the top of the pattern.

Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. This professionally drafted cad dxf file contains two high precision template designs to create cutters for this modern base detail, one for cutting the entire width, and the other for milling only the profile portion of the design. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is here. Width = 5.000", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .406", bottom set of cutters = .062".

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
