Baseboard 5" - 125
Baseboard 5" - 125

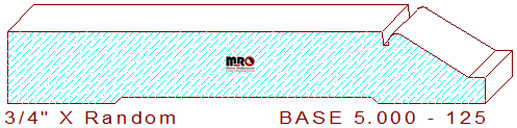

This unique baseboard 5" - 125 measures 5.000" wide by .750" thickness, enabling a 5-1/4" inch wide blank of four-quarter lumber for milling on an industrial molder. The pattern composes a 3-29/32" flat line with a 9/64" vertical step joined to a 1/16" sunk fillet on the top center. It connects to a 3/32" convex arc tangent to a downsloping angled line with an 11/64" line segment on the right edge. We offer hundreds of door & window casing to complement this design; here is one you may want to review and consider, door casing 3.500" - 217.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.343
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$342.00
$342.00
Total:
$684.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$365.00
Total:
$730.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.50
$399.50
Total:
$799.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
